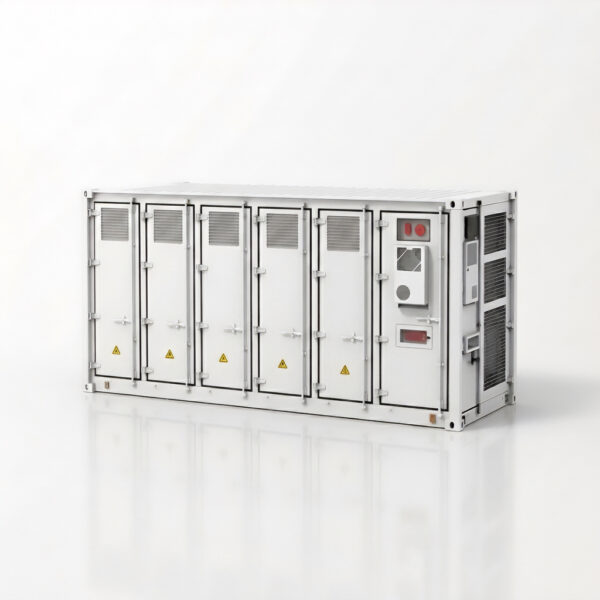

ES2411 Liquid-cooled Energy Storage System

The ES2411 is a high-performance, integrated, containerized battery energy storage system designed to deliver intelligent, reliable, and efficient energy solutions for industrial and commercial applications. It optimizes energy efficiency and significantly enhances power supply stability. With outstanding performance and quality, the ES2411 has passed authoritative certifications such as CE, IEC, and UN38.3, ensuring a safe, stable, and dependable power supply for users.

Highly Integrated

All-in-one design simplifies transportation and installation while reducing deployment costs.

Cost-Effective

Intelligent charge and discharge management extends battery life. Up to 95% battery cycle efficiency and 99% PCS efficiency.

Safe & Reliable

Intelligent monitoring, fire detection, and gas suppression work together to ensure safe and reliable operation.

Advanced Control

Supports seamless grid-connected and off-grid switching with integrated control for flexible energy management.

Product Specifications

Product name ES2411
Battery Parameters
Cell type
LFP
Cell specification
314Ah
Continuous cycle life of the cell
cycling at 25°C for 8000 times / at 45°C for 3000 times (>70% * SOH)
Battery cluster configuration
1P240S
Number of battery clusters
10
Rated energy
2411kWh
Rated voltage
768V
Voltage range
672 ~ 864V
Battery Pack Parameters
153.6V/314Ah 1P48S
Cooling Method
Liquid Cooling
AC Side Parameters
Rated AC Power
1250kW
Rated voltage
400V
Rated current
1804A
AC side wiring method
3P4W
AC power factor
-1 (leading) ~ 1 (lagging)
Total current waveform dis-
<3%
System Parameters
Operating Temperature Range
0 ~ 45°C
Operating humidity range
0 ~ 95%RH
Maximum working altitude
2000m
Degree of protection
IP55
Degree of anti-corrosion
C4
Fire protection system
Aerosol + Open Water Spray System
Communication interface
CAN / RS485 / Ethernet
Communication protocol
Modbus TCP/RTU
Product dimensions (W * D * H)
6058 * 2438 * 2896 mm
Weight
<30t
Applicable scenarios
Power generation side / Grid side / User side
Product certification
IEC CE UN38.3

Get the Complete Technical Specifications

Download our comprehensive product datasheet to get a full breakdown of the engineering specs, performance metrics, and system configurations.
